PrecisionX™ Gene Tagging HR Targeting Vector (GFP-T2A-Luc-pA-LoxP-EF1α-RFP-T2A-Puro-pA-LoxP-MCS)

Fuse a GFP reporter and co-express luciferase with any gene using this HR targeting vector—features RFP and puromycin as a removable selection cassette.

Products

Catalog Number Description Size Price Quantity Add to Cart
HR150PA-1 GFP-T2A-Luciferase Co-Expression HR Targeting Vector (GFP-T2A-Luc-pA-loxP-EF1α-RFP-T2A-Puro-pA-LoxP-MCS) (Gene Tagging) 10 µg $895.00
- +
Contact Us

Overview

Overview

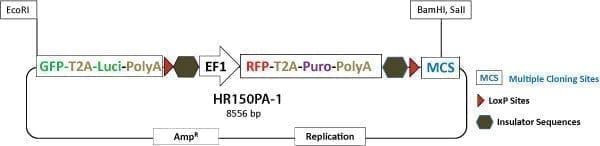

Fuse GFP and co-express luciferase with any gene Learn more about the expression of any gene using the PrecisionX™ Gene Tagging HR Targeting Vector (GFP-T2A-Luc-pA-LoxP-EF1α-RFP-T2A-Puro-pA-LoxP-MCS) which fuses GFP and co-expresses luciferase with your gene of interest. Clone your homology arms into the EcoRI site upstream of the GFP gene and into the MCS, and use puromycin selection and RFP-positive imaging to find integrants. After you’ve identified clones with your GFP-tagged gene, you can remove the selection cassette using the Cre-LoxP system (learn more about Cre-LoxP excision here). PrecisionX Gene Tagging HR Targeting Vector (GFP-T2A-Luc-pA-LoxP-EF1α-RFP-T2A-Puro-pA-LoxP-MCS)Why use an HR targeting vector? Even though gene knock-outs can result from DSBs caused by Cas9 alone, SBI recommends the use of HR targeting vectors (also called HR donor vectors) for more efficient and precise mutation. HR donors can supply elements for positive or negative selection ensuring easier identification of successful mutation events. In addition, HR donors can include up to 6-8 kb of open reading frame for gene knock-ins or tagging, and, when small mutations are included in either 5’ or 3’ homology arms, can make specific, targeted gene edits. Choose the right HR Targeting Vector for your project
Catalog #HR Donor VectorFeatures*Application
Gene Knock-outGene Knock-inGene EditsGene Tagging
HR100PA-1MCS1-LoxP-MCS2-MCS3-pA-LoxP-MCS4Basic HR Donor
HR110PA-1MCS1-EF1-alpha-RFP-T2A-Puro-pA-MCS2">MCS1-EF1α-RFP-T2A-Puro-pA-MCS2Removable RFP marker and puromycin selection
HR120PA-1GFP-pA-LoxP-EF1α-RFP-T2A-Puro-pA-LoxP-MCSPuro-pA-LoxP-MCSTag with GFP fusion
Removable RFP marker and puromycin selection
HR130PA-1T2A-GFP-pA-loxP-EF1α-RFP-T2A-Puro-pA-LoxP-MCSA-loxP-EF1α-RFP-T2A-Puro-pA-LoxP-MCSCo-express GFP with “tagged” gene via T2A
Removable RFP marker and puromycin selection
HR150PA-1GFP-T2A-Luc-pA-loxP-EF1α-RFP-T2A-Puro-pA-LoxP-MCSTag with GFP fusion and co-express luciferase via T2A
Removable RFP marker and puromycin selection
HR180PA-1IRES-GFP-pA-loxP-MCS1-EF1α-RFP-T2A-Puro-pA-LoxP-MCS2Co-express GFP with “tagged” gene via IRES
Removable RFP marker and puromycin selection
HR210PA-1MCS1-LoxP-EF1α-GFP-T2A-Puro-P2A-hsvTK-pA-LoxP-MCS2Removable GFP marker, puromycin selection, and TK selection
HR220PA-1GFP-pA-LoxP-EF1α-RFP-T2A-Hygro-pA-LoxP-MCSTag with GFP fusion
Removable RFP ,arker and hygromycin Selection
HR410PA-1MCS1-EF1α-GFP-T2A-Puro-pA-MCS2Removable GFP marker and puromycin selection
HR510PA-1MCS1-EF1α-RFP-T2A-Hygro-pA-MCS2Removable RFP marker and hygromycin selection
HR700PA-1MCS1-EF1α-GFP-T2A-Puro-pA-MCS2-PGK-hsvTKEnrich for on-target integration with negative TK selection**
Removable GFP marker and puromycin selection
HR710PA-1MCS1-EF1α-RFP-T2A-Hygro-pA-MCS2-PGK-hsvTKEnrich for on-target integration with negative TK selection**
Removable RFP marker and hygromycin selection
HR720PA-1MCS1-EF1α-Blasticidin-pA-MCS2-PGK-hsvTKEnrich for on-target integration with negative TK selection**
Removable blasticidin selection
GE602A-1pAAVS1D-PGK-MCS-EF1α-copGFPpuroFirst generation AAVS1-targeting HR Donor
GE603A-1pAAVS1D-CMV-RFP-EF1α-copGFPpuroFirst generation AAVS1-targeting HR Donor (positive control for GE602A-1)
GE620A-1AAVS1-SA-puro-MCSSecond generation AAVS1-targeting HR Donor
Promoterless to knock-in any gene or promoter-gene combination
GE622A-1AAVS1-SA-puro-EF1α-MCSSecond generation AAVS1-targeting HR Donor
Constitutive expression of your gene-of-interest
GE624A-1AAVS1-SA-puro-MCS-GFPSecond generation AAVS1-targeting HR Donor
Create reporter cell lines
CAS620A-1AAVS1-SA-puro-EF1α-hspCas9Knock-in Cas9 to the AAVS1 site
PBHR100A-1MCS1-5'PB TR-EF1α-GFP-T2A-Puro-T2A-hsvTK-pA-3' PB TR-MCS2Use with the PiggyBac Transposon System
Enables seamless gene editing with no residual footprint (i.e. completely remove vector sequences)
*All HR Target Vectors except PBHR100A-1 contain LoxP sites. Any sequences that are integrated between the two LoxP sites can be removed through transient expression of Cre Recombinase.
**The clever design of these HR Donors enables enrichment for on-target integration events. A PGK-hsvTK cassette is included outside of the homology arms. Because of this configuration, on-target integration that results from homologous recombination will not include the PGK-hsvTK cassette—only randomly-integrated off-target events will lead to integration of PGK-hsvTK and resulting TK activity. Therefore, TK selection will negatively select against off-target integrants. Click on any one of these vectors to see a diagram of how the negative selection works.

How It Works

How It Works

At-a-glance—how to use an HR Targeting Vector to tag a gene

Using an HR Donor Vector and the CRISPR/Cas9 System to tag a gene

Figure 1. Tagging a gene using an HR Targeting Vector. Step 1: Cas9 creates a double-stranded break(DSB) in the genomic DNA at a site that is complimentary to the gRNA. Step 2: The DNA repair machinery is recruited to the DSB. In the presence of an HR Donor with homology to the region adjacent to the DSB (blue areas of the genomic and vector DNA) homologous recombination (HR) is favored over non-homologous end joining (NHEJ). The tag cassette you’d like to integrate into the genome (fuses GFP and co-expresses luciferase with your gene-of-interest) should lie outside of the two LoxP sites. Result: The HR event leads to insertion of the region of the HR Donor Vector between the two homology arms—your tag co-expression cassette is integrated to the C-terminus of your gene-of-interest and your selection cassette is integrated into the gene. To remove the selection cassette (leaving behind the tag and a single LoxP site), transiently express Cre recombinase.

Genome engineering with CRISPR/Cas9

For general guidance on using CRISPR/Cas9 technology for genome engineering, including the design of HR Targeting Vectors, take a look at our CRISPR/Cas9 tutorials as well as the following application notes:

CRISPR/Cas9 Gene Knock-Out Application Note (PDF) »
CRISPR/Cas9 Gene Editing Application Note (PDF) »
CRISPR/Cas9 Gene Tagging Application Note (PDF) »

Supporting Data

Resources

Citations
