pCDH-CuO-MCS-IRES-GFP-EF1α-CymR-T2A-Puro SparQ™ All-in-one Cloning and Expression Lentivector

Simplify your SparQ projects by delivering your gene-of-interest and CymR with the same lentivector – co-express GFP with the cumate-inducible promoter
  • Robust—increase expression up to 32-fold
  • Adjustable—tune expression levels by titrating the amount of cumate
  • Reversible—turn expression on, then off, then on again
  • Versatile—choose from all-in-one formats that co-express CymR and your gene-of-interest, or two-vector systems where CymR is expressed from a different plasmid
  • Powerful—suitable for in vivo applications

Products

Catalog Number Description Size Price Quantity Add to Cart
QM812B-1 pCDH-CuO-MCS-IRES-GFP-EF1α-CymR-T2A-Puro All-in-one inducible IRES lentivector 10 µg $1,182.00
- +
Contact Us

Overview

Overview

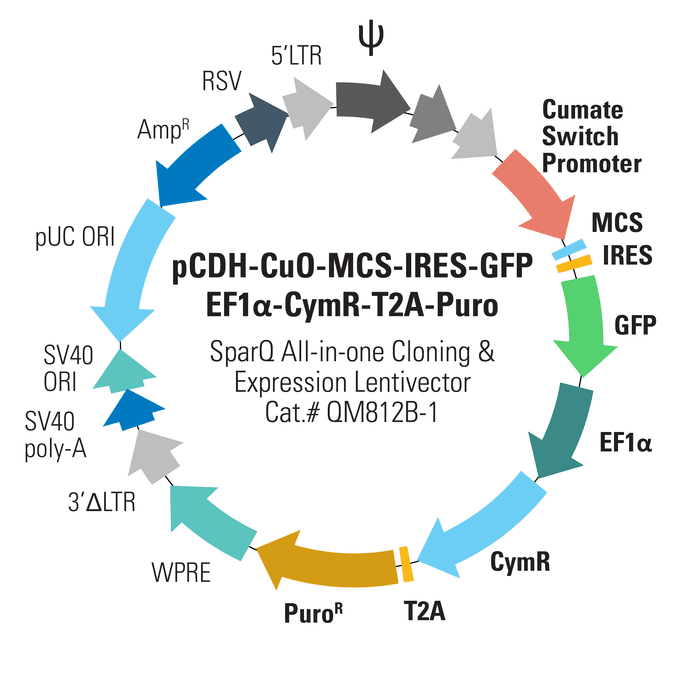

Simplify SparQ projects with an all-in-one vector With SBI’s SparQ™ Cumate Switch System, you can get inducible gene expression in mammalian cells with a range of cloning and expression lentivectors. The pCDH-CuO-MCS-IRES-GFP-EF1α-CymR-T2A-Puro SparQ All-in-one Cloning and Expression Lentivector (Cat.# QM812B-1) simplifies your SparQ projects by co-expressing both your gene- or miRNA-of-interest and a GFP marker from the inducible cumate switch promoter, enabling measurement of induction by GFP fluorescence*. Co-expression is mediated by an IRES element. The vector also constitutively co-expresses CymR and a puromycin resistance marker from an EF1α promoter, with co-expression mediated by the T2A element. pCDH-CuO-MCS-IRES-GFP-EF1α-CymR-T2A-Puro SparQ All-in-one Cloning and Expression Lentivector With SBI’s SparQ™ Cumate Switch System, you can get inducible gene expression in mammalian cells through the binding of cumate, a non-toxic small molecule, to CymR. Expression levels of your gene-of-interest are tightly controlled and increase with increasing cumate concentration until maximum induction is reached—see as much as a 32-fold increase in gene expression. Even better, induction is reversible, so you can turn expression levels on and off. Delivering negligible background expression in the absence of cumate, the SparQ System is an excellent choice for achieving controlled levels of gene expression.
  • Robust—increase expression up to 32-fold
  • Adjustable—tune expression levels by titrating the amount of cumate
  • Reversible—turn expression on, then off, then on again
  • Versatile—choose from all-in-one formats that co-express CymR and your gene-of-interest, or two-vector systems where CymR is expressed from a different plasmid
  • Powerful—suitable for in vivo applications
*NOTE: Due to the size of the QM812B-1 lentivector, you may only insert up to 2 kb of DNA into the MCS. A >1 kb insert will deliver excellent expression as shown below with the 1.3 kb mouse Foxp3 cDNA cloned into the QM812B-1 vector and induced with 300 µg/mL cumate.A 1.3 kb insert is strongly expressed by the QM812B-1 vector

How It Works

How It Works

Tightly-controlled, inducible gene expression

SBI’s SparQ Cumate Switch System delivers robust, titratable gene expression with low background through three components:

  • Cumate, a non-toxic, small-molecule inducer
  • CymR, a repressor that binds to cumate operator sequences in the absence of cumate
  • SparQ Lentivector that contains an MCS to clone-in your gene-of-interest, the cumate inducible promoter with cumate operator sequences (CuO) upstream of the MCS, and one or more markers

CymR has a high binding affinity for cumate and, as more cumate is added, fewer CymR molecules bind to the CuO sequences in the promoter resulting in increased expression. Exhibiting much lower background expression than similar systems, SBI’s cumate-inducible vectors can provide up to 32-fold induction of gene expression.

How the cumate operator switch works

Supporting Data

Supporting Data

Tight expression control with low background with the SparQ Cumate Switch System

Get lower background and higher induction with the SparQ Cumate Switch System than other inducible systems

Figure 1. Get lower background and higher induction with the SparQ Cumate Switch System than other inducible systems.

Gene expression with the SparQ Cumate Switch System can be turned on and off, then on again.

Figure 2. Gene expression with the SparQ Cumate SwitchSystem can be turned on and off, then on again.

Gene expression with the SparQ Cumate Switch System is titratable, with increasing amounts of cumate inducing a linear increase in gene expression

Figure 3. Gene expression with the SparQ Cumate Switch System is titratable, with increasing amounts of cumate inducing a linear increase in gene expression.

With the SparQ System, gene expression can also be titrated by increasing the amount of transduced SparQ lentivirus, even up to 30 MOI

Figure 4. With the SparQ System, gene expression can also be titrated by increasing the amount of transduced SparQ lentivirus, even up to 30 MOI.
