NF-κB/Jurkat/GFP™ Transcriptional Reporter Cell Line

Monitor NF-κB signaling in vitro in a physiologically-relevant cell line to screen for genetic and/or small molecule inhibitors and activators, and more
  • Study NF-κB signaling in physiologically-relevant Jurkat cells
  • Use for fluorescence microscopy or FACS
  • Take advantage of the cell line’s 30-fold over background NF-κB-dependent GFP expression
  • Compatible with a variety of screening methods including small molecule and RNAi

Products

Catalog Number Description Size Price Quantity Add to Cart
TR850A-1 NF-kB/Jurkat/GFP Transcriptional Reporter Cell Line >2 x 10^6 Cells $3636
- +
Contact Us

Overview

Overview

Monitor NF-κB signaling in Jurkat cells

Speed your studies with this pre-built Jurkat cell line for monitoring NF-κB signaling in real time. We’ve already integrated an expression cassette that includes NF-κB-responsive transcriptional elements upstream of a minimal CMV promoter (mCMV)-GFP cassette. Expression of GFP (up to 30-fold over background) only occurs in the presence of active NF-κB signaling, enabling screening for genetic and/or small molecule inhibitors and activators of the NF-κB signaling pathway.

  • Study NF-κB signaling in physiologically-relevant Jurkat cells
  • Use for fluorescence microscopy or FACS
  • Take advantage of the cell line’s 30-fold over background NF-κB-dependent GFP expression
  • Compatible with a variety of screening methods including small molecule and RNAi

How It Works

Supporting Data

Supporting Data

See the NF-κB/Jurkat/GFP Transcriptional Reporter Cell Line in action

Strong GFP fluorescence in response to signaling enables FACS

Strong GFP fluorescence in response to signaling enables FACS

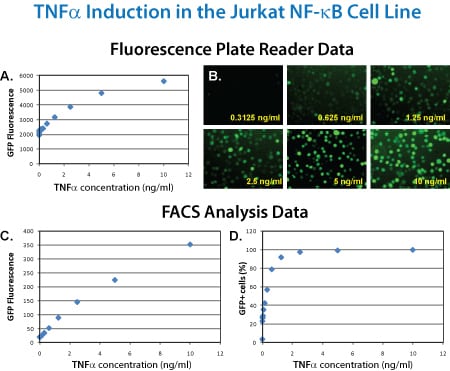

The NF-κB/Jurkat/GFP provides a strong, dose-dependent response to TNF-αThe NF-κB/Jurkat/GFP provides a strong, dose-dependent response to TNF-α

METHODS: NF-B/Jurkat/GFP™ Reporter cells (5×105 cells) were plated at a concentration of 1 million cells/mL into each well of a 24-well plate. TNF-α was added in the amount indicated in the figure. After 24 hours, GFP fluorescence was measured and intensities plotted against TNF-α concentration (A). The fluorescent cells in the original 24-well plate were also photographed on a Zeiss inverted epi-fluorescence microscope (B). Alternatively, 200 μL of cells were fixed with formaldehyde and GFP reporter induction analyzed by flow cytometry, and either the GFP intensities (C) or the percentage of GFP positive cells (D) were plotted against the amount of TNF-α.

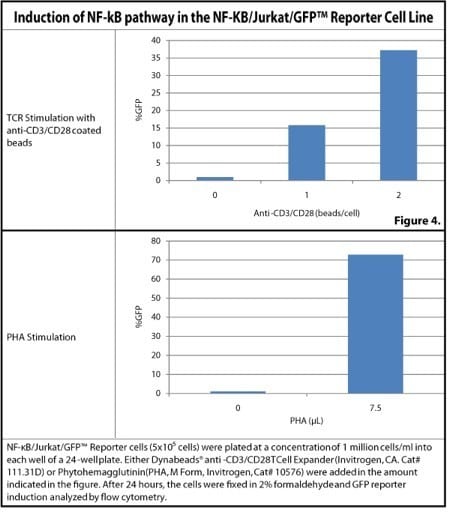

The NF-κB/Jurkat/GFP provides appropriate T cell receptor-mediated signalingThe NF-κB/Jurkat/GFP provides appropriate T cell receptor-mediated signaling

Resources

Citations

We're sorry, an error has occurred while generating this content.
