PB-EF1α-Oct4-Sox2-Klf4-Myc-IRES-GFP Human 4-in-1 iPSC PiggyBac Vector

Take advantage of the large insert capabilities of the PiggyBac Transposon System to simultaneously deliver four human reprogramming factors for iPSC generation

Description
Size
Catalog Number
Price
Quantity
Add to Cart

PB-EF1α-Oct4-Sox2-Klf4-Myc-IRES-GFP Human 4-in-1 iPSC Vector

Array ( [attributes] => Array ( [attribute_size] => 10 µg ) [availability_html] => [backorders_allowed] => [dimensions] => Array ( [length] => [width] => [height] => ) [dimensions_html] => N/A [display_price] => 1458 [display_regular_price] => 1458 [image] => Array ( [title] => piggybac-human-4-in-1-ipsc-vector-01 [caption] => [url] => https://www.systembio.com/wp-content/uploads/gene-expression-systems/piggybac-human-4-in-1-ipsc-vector-01.png [alt] => [src] => https://www.systembio.com/wp-content/uploads/gene-expression-systems/piggybac-human-4-in-1-ipsc-vector-01-600x600.png [srcset] => https://www.systembio.com/wp-content/uploads/gene-expression-systems/piggybac-human-4-in-1-ipsc-vector-01-600x600.png 600w, https://www.systembio.com/wp-content/uploads/gene-expression-systems/piggybac-human-4-in-1-ipsc-vector-01-300x300.png 300w, https://www.systembio.com/wp-content/uploads/gene-expression-systems/piggybac-human-4-in-1-ipsc-vector-01-100x100.png 100w [sizes] => (max-width: 600px) 100vw, 600px [full_src] => https://www.systembio.com/wp-content/uploads/gene-expression-systems/piggybac-human-4-in-1-ipsc-vector-01.png [full_src_w] => 2500 [full_src_h] => 2500 [gallery_thumbnail_src] => https://www.systembio.com/wp-content/uploads/gene-expression-systems/piggybac-human-4-in-1-ipsc-vector-01-100x100.png [gallery_thumbnail_src_w] => 100 [gallery_thumbnail_src_h] => 100 [thumb_src] => https://www.systembio.com/wp-content/uploads/gene-expression-systems/piggybac-human-4-in-1-ipsc-vector-01-300x300.png [thumb_src_w] => 300 [thumb_src_h] => 300 [src_w] => 600 [src_h] => 600 ) [image_id] => 11023 [is_downloadable] => [is_in_stock] => 1 [is_purchasable] => 1 [is_sold_individually] => no [is_virtual] => [max_qty] => [min_qty] => 1 [price_html] => $1,458 [sku] => PB630A-1 [variation_description] =>

PB-EF1α-Oct4-Sox2-Klf4-Myc-IRES-GFP Human 4-in-1 iPSC Vector

[variation_id] => 64598 [variation_is_active] => 1 [variation_is_visible] => 1 [weight] => [weight_html] => N/A )
10 µg
PB630A-1
$ 1458
Contact Us Speak to a specialist
1-888-266-5066

Overview

Easy transgenesis means easy reprogramming

With the large insert capabilities of the PiggyBac Transposon System and the system’s easy, consistent transgenesis, you can use a single vector—the PB-EF1α-Oct4-Sox2-Klf4-Myc-IRES-GFP Human 4-in-1 iPSC PiggyBac Vector—to generate human iPSCs. This pre-built vector is ready-to-co-transfect with the Super PiggyBac Transposase Expression Vector (Cat.# PB210PA-1), and delivers human Oct4, Sox2, Klf4, and Myc co-expressed from a moderate EF1α promoter. The vector also includes a GFP reporter to simplify selection of transfectants.

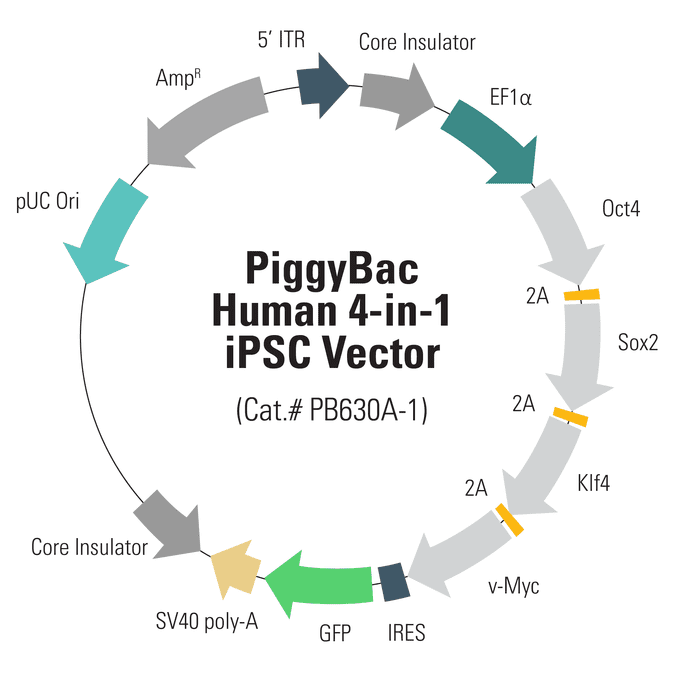

PB-EF1α-Oct4-Sox2-Klf4-Myc-IRES-GFP Human 4-in-1 iPSC PiggyBac Vector

With the PiggyBac Transposon System, you can:

  • Make transgenic cell lines with a single transfection
  • Integrate multiple PiggyBac Vectors in a single transfection
  • Insert an expression cassette into human, mouse, and rat cells
  • Deliver virtually any-sized DNA insert, from 10 – 100 kb
  • Choose from PiggyBac Vectors that express your gene-of-interest from constitutive or inducible promoters and include a variety of markers
  • Determine the number of integration events with the PiggyBac qPCR Copy Number Kit (# PBC100A-1)

Customer Agreements
Academic customers can purchase PiggyBac Transposon System components for internal research purposes for indefinite use, whereas commercial customers must sign a customer agreement for a six-month, limited-use license to test the technology.
For end user license information, see the following:

* SBI is fully licensed to distribute PiggyBac vectors as a partnership with Transposagen Biopharmaceuticals, Inc.

How It Works

The PiggyBac Transposon System’s Cut-and-Paste Mechanism

The efficient PiggyBac Transposon System uses a cut-and-paste mechanism to transfer DNA from the PiggyBac Vector into the genome. If only temporary genomic integration is desired, the Excision-only PiggyBac Transposase can be transiently expressed for footprint-free removal of the insert, resulting in reconstitution of the original genome sequence.

The PiggyBac Transposon System’s cut-and-paste mechanism

Figure 1. The PiggyBac Transposon System’s cut-and-paste mechanism.

  • The Super PiggyBac Transposase binds to specific inverted terminal repeats (ITRs) in the PiggyBac Cloning and Expression Vector and excises the ITRs and intervening DNA.
  • The Super PiggyBac Transposase inserts the ITR-Expression Cassette-ITR segment into the genome at TTAA sites.
  • The Excision-only Super PiggyBac Transposase can be used to remove the ITR-Expression Cassette-ITR segment from the genome, for footprint-free removal

Supporting Data

Easily reprogram human cells with the PiggyBac Transposon System

Easily reprogram human cells with the PiggyBac Transposon System

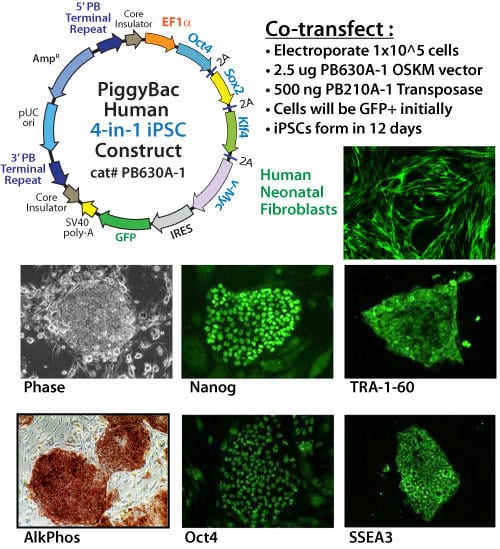

Figure 2. Easily reprogram human cells with the PiggyBac Transposon System. Human neonatal skin fibroblasts were co-transfected with PB-EF1α-Oct4-Sox2-Klf4-Myc-IRES-GFP Human 4-in-1 iPSC PiggyBac Vector (Cat.# PB630A-1) and the Super PiggyBac Transposase Expression Vector (Cat.# PB210PA-1). iPS cells were derived using morphological selection criteria. When cultured under standard human ES cell culture conditions, the morphology of the custom human iPS cells was identical to that of human ES cells. Additionally, the cells express the pluripotency markers Oct4, Nanog, SSEA3, TRA-1-60, and demonstrate strong endogenous alkaline phosphatase staining.


Citations

  • Møller, HD, et al. (2018) CRISPR-C: circularization of genes and chromosome by CRISPR in human cells. Nucleic Acids Res.. 2018 Dec 14; 46(22):e131. PM ID: 30551175
  • Shinmura, K, et al. (2018) Defective repair capacity of variant proteins of the DNA glycosylase NTHL1 for 5-hydroxyuracil, an oxidation product of cytosine. Free Radic. Biol. Med.. 2018 Dec 12; 131:264-273. PM ID: 30552997
  • Fujii, M, et al. (2018) Human Intestinal Organoids Maintain Self-Renewal Capacity and Cellular Diversity in Niche-Inspired Culture Condition. Cell Stem Cell. 2018 Dec 6; 23(6):787-793.e6. PM ID: 30526881
  • Lee, JH, et al. (2018) Forkhead Box O3 promotes cell proliferation and inhibits myotube differentiation in chicken myoblast cells. Br. Poult. Sci.. 2018 Nov 14;. PM ID: 30427204
  • Andres, SF, et al. (2018) IMP1 3′ UTR shortening enhances metastatic burden in colorectal cancer. Carcinogenesis. 2018 Nov 8;. PM ID: 30407516
  • Schertzer, M, et al. (2018) A piggyBac-based toolkit for inducible genome editing in mammalian cells. bioRxiv. 2018 Oct 20;. Link: bioRxiv
  • Han, Y, et al. (2018) Superiority of SpiroZin2 Versus FluoZin-3 for monitoring vesicular Zn2+ allows tracking of lysosomal Zn2+ pools. Sci Rep. 2018 Oct 9; 8(1):15034. PM ID: 30302024
  • Rodriguez-Rodriguez, J, et al. (2018) Distinct Roles of RZZ and Bub1-KNL1 in Mitotic Checkpoint Signaling and Kinetochore Expansion. Current Biology. 2018 Oct 1;. Link: Current Biology
  • Hunter, M, et al. (2018) Optimization of Protein Expression in Mammalian Cells. Curr Protoc Protein Sci. 2018 Sep 28;:e77. PM ID: 30265450
  • Kim, TH & Zhou, H. (2018) Overexpression of Chicken IRF7 Increased Viral Replication and Programmed Cell Death to the Avian Influenza Virus Infection Through TGF-Beta/FoxO Signaling Axis in DF-1. Front Genet. 2018 Sep 25; 9:415. PM ID: 30356848
  • Wang, Y, et al. (2018) The cerebral cavernous malformation disease causing gene KRIT1 participates in intestinal epithelial barrier maintenance and regulation. FASEB J.. 2018 Sep 25;:fj201800343R. PM ID: 30252535
  • Brasino, M, et al. (2018) Anti-EGFR Affibodies with Site-Specific Photo-Cross-Linker Incorporation Show Both Directed Target-Specific Photoconjugation and Increased Retention in Tumors. J. Am. Chem. Soc.. 2018 Sep 19; 140(37):11820-11828. PM ID: 30203972
  • Kirk, JM, et al. (2018) Functional classification of long non-coding RNAs by k-mer content. Nat. Genet.. 2018 Sep 17;. PM ID: 30224646
  • Klein, CH, et al. (2018) PDEδ inhibition impedes the proliferation and survival of human colorectal cancer cell lines harboring oncogenic KRas. Int. J. Cancer. 2018 Sep 8;. PM ID: 30194764
  • Wei, Z, et al. (2018) Fam198a, a member of secreted kinase, secrets through caveolae biogenesis pathway. Acta Biochim. Biophys. Sin. (Shanghai). 2018 Sep 5;. PM ID: 30188967
  • Strubberg, AM, et al. (2018) The Zinc Finger Transcription Factor PLAGL2 Enhances Stem Cell Fate and Activates Expression of ASCL2 in Intestinal Epithelial Cells. Stem Cell Reports. 2018 Aug 14; 11(2):410-424. PM ID: 30017821
  • Gombodorj, N, et al. (2018) Correlation between high FBXW7 expression in pretreatment biopsy specimens and good response to chemoradiation therapy in patients with locally advanced esophageal cancer: A retrospective study. J Surg Oncol. 2018 Aug 11;. PM ID: 30098297
  • Nanki, K, et al. (2018) Divergent Routes toward Wnt and R-spondin Niche Independency during Human Gastric Carcinogenesis. Cell. 2018 Aug 9; 174(4):856-869.e17. PM ID: 30096312
  • Fuentes, DR, Swigut, T & Wysocka, J. (2018) Systematic perturbation of retroviral LTRs reveals widespread long-range effects on human gene regulation. Elife. 2018 Aug 2; 7. PM ID: 30070637
  • Mossine, VV, et al. (2018) Interaction of Bacterial Phenazines with Colistimethate in Bronchial Epithelial Cells. Antimicrob. Agents Chemother.. 2018 Aug 1; 62(8). PM ID: 29784845
