CAGs-mIL-23 Enhanced Episomal Vector (EEV)

Facilitate your studies of inflammation in mouse models with this EEV plasmid that provides constitutive, non-viral, sustained expression of the mouse IL-23 gene

Catalog Number
Add to Cart

Mouse IL-23 Enhanced Episomal Expression Vector

Array ( [attributes] => Array ( [attribute_size] => 100 µg ) [availability_html] => [backorders_allowed] => [dimensions] => Array ( [length] => [width] => [height] => ) [dimensions_html] => N/A [display_price] => 745 [display_regular_price] => 745 [image] => Array ( [title] => cags-mil-23-01 [caption] => [url] => [alt] => [src] => [srcset] => 600w, 300w, 100w [sizes] => (max-width: 600px) 100vw, 600px [full_src] => [full_src_w] => 2500 [full_src_h] => 2500 [gallery_thumbnail_src] => [gallery_thumbnail_src_w] => 100 [gallery_thumbnail_src_h] => 100 [thumb_src] => [thumb_src_w] => 300 [thumb_src_h] => 300 [src_w] => 600 [src_h] => 600 ) [image_id] => 10990 [is_downloadable] => [is_in_stock] => 1 [is_purchasable] => 1 [is_sold_individually] => no [is_virtual] => [max_qty] => [min_qty] => 1 [price_html] => $745 [sku] => EEV651A-1 [variation_description] =>

Mouse IL-23 Enhanced Episomal Expression Vector

[variation_id] => 63642 [variation_is_active] => 1 [variation_is_visible] => 1 [weight] => [weight_html] => N/A )
100 µg
$ 745
Contact Us Speak to a specialist


An easy-to-produce non-integrating option for constitutive mouse IL-23 expression

With the CAGs-mIL-23 Enhanced Episomal Vector (EEV), you can get sustained, long-lasting, and non-viral expression of the mouse IL-23 gene from a non-integrating vector. Driven by the constitutive CAG promoter, the CAGs-mIL-23 EEV works in most cell types, including primary cells and stem cells, and can even be directly injected into mice.

CAGs-mIL-23 Enhanced Episomal Vector (EEV)

With virtually no limits on insert size (unlike AAV vectors) Enhanced Episomal Vectors (EEVs) are an excellent choice for non-integrating, non-viral gene expression. Because they replicate in synchrony with the host cell, they are stably inherited and can be used for long-lasting expression—up to several months both in vitro and in vivo—without modifying the host genome. SBI’s EEV System, which is an enhanced version of the Epstein-Barr Nuclear Antigen-1 (oriP-EBNA1) system, offers:

  • High levels of expression
  • Easy to clone formats
  • No special plasmid production
  • Nonviral, non-integrating technology
  • Constitutive and inducible vector formats

Supporting Data

Sustained, non-integrating expression of mouse IL-23 in vivo via EEV

A constitutive EEV reporter based on CAGs-MCS leads to higher serum IL-23 levels in mice than two other episomal vector systems

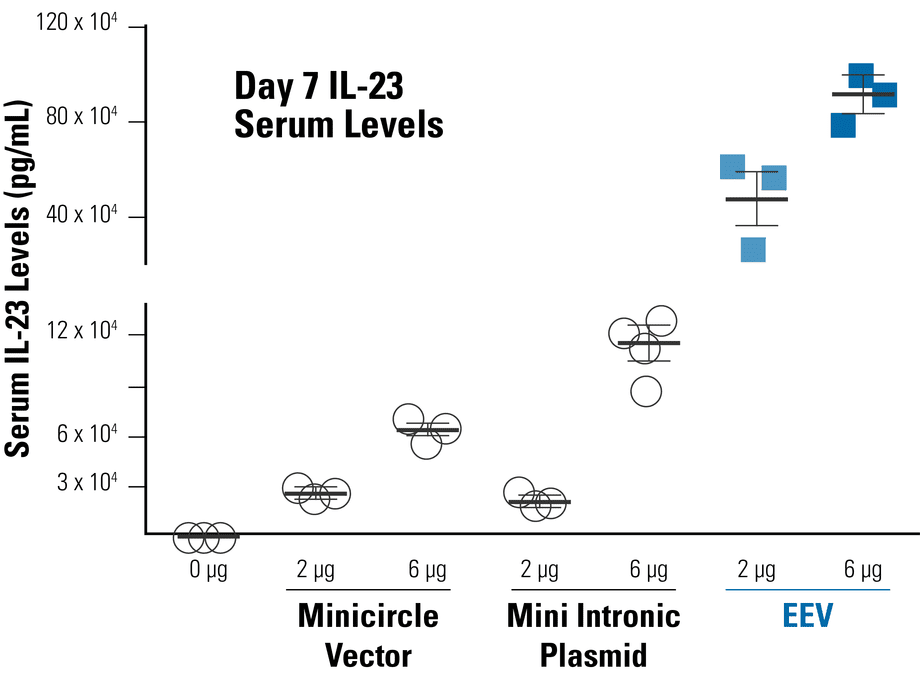

Figure 1. A constitutive EEV reporter based on CAGs-MCS leads to higher serum IL-23 levels in mice than two other episomal vector systems. We compared SBI’s EEV system to two other episomal vector systems—minicircle technology1 and the mini-intronic plasmid system2—using a mouse IL-23 cDNA cloned into the three different vectors. We introduced the three vectors or vehicle only into mice using hydrodynamic tail vein delivery (HDD). After seven days, we measured serum IL-23 levels using an ELISA assay and found that the EEV technology outperformed the other episomal platforms by at least 10-fold, demonstrating the ability of the EEV platform to provide sustained, long-lasting transgene expression.


  1. Kay MA, He CY, and Chen ZY. A robust system for production of minicircle DNA vectors. Nat Biotechnol. 2010 Dec; 28(12):1287-9. PMCID: PMC4144359.
  2. Lu J, Zhang F, and Kay MA. A mini-intronic plasmid (MIP): a novel robust transgene expression vector in vivo and in vitro. Mol Ther. 2013 May; 21(5):954-63. PMCID: PMC3666631.
