AXMIR RNA Oligos

Use exosomes to deliver anti-miRNAs to cells: with our ready-to-transfect AXMIR RNA Oligos, you can easily generate exosomes containing a specific anti-miRNA.

There are 22 individual products in this category.

Show All Products

Overview

Putting exosomes to work: Delivering anti-miRNA

With SBI’s unique AXMIR (and the related XMIR) technology, you can take advantage of normal cellular processes to package a specific anti-miRNA into exosomes, and then use those exosomes to deliver that anti-miRNA to target cells. Choose from one of our pre-built, ready-to-transfect AXMIRs (see list below). If you don’t see the anti-miRNA you’re interested in, simply contact us at tech@systembio.com and we’ll design and synthesize the custom AXMIR for you.

  • Flexible—generate anti-miRNA-packed exosomes using the cell line of your choice
  • Powerful—great for a range of applications, including:
    • Modulating expression of miRNA-targets in recipient cells
    • Developing exosome-delivered anti-miRNA-based therapies

How It Works

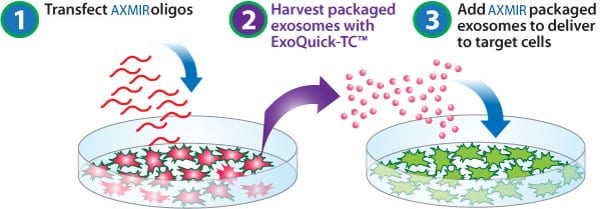

Anti-miRNA packaging into exosomes with AXMIR

Generating exosomes with specific anti-miRNAs using AXMIR

AXMIR packaging relies on an RNA sequence tag—the XMotif (identified and optimized by SBI)—that targets small RNAs to exosomes for packaging. By fusing the XMotif to an anti-miRNA oligo, you can ensure packaging of that anti-miRNA into exosomes. Simply transfect an AXMIR Oligo into exosome-producing cells, wait a short time for new exosome packaging, and isolate newly secreted exosomes containing your anti-miRNA.

Supporting Data

XMIRs and AXMIRs can be used to modulate levels of a specific protein in target cells

With XMIR/AXMIR technology, you can use exosomes to deliver miRNAs and anti-miRNAs to cells in order to alter levels of a specific protein (NOTE: when combined with our XStampTM Exosome Targeting Technology, you can even generate miR/anti-miR-carrying exosomes that are targeted to a specific cell type).

To demonstrate the effectiveness of using exosomes containing either miRNA or anti-miRNA to modulate protein expression levels in target cells, we generated XMIR-21 and AXMIR-21 containing exosomes from HEK293 cells, and used Western blotting to monitor expression levels of the protein PDCD4, whose expression is reduced in the presence of miR-21.

We transfected HEK293 cells with either an miR-21 XMIR Oligo (XMIR-21) or an anti-miR-21 AXMIR Oligo (AXMIR-21), isolated exosomes loaded with the respective XMIR/AXMIR, and then added these exosomes to naïve HEK-293 cells in culture. After 24 hours, total cell lysates were taken and Western blots for PDCD4, a known miR-21 target, were performed (Figure 1A), with GAPDH protein levels used as a loading control and reference signal for band intensity quantitation analysis. Quantitation is shown in Figure 1B.

These data clearly show that XMIR and AXMIR-containing exosomes can modulate expression of the target protein, as addition of exosomes from cells transfected with XMIR-21 resulted in down regulation of endogenous levels of PDCD4, and addition of exosomes from cells transfected with AXMIR-21 resulted in increased levels of PDCD4. These results also confirm that XMIRs act on endogenous targets and that AXMIRs effectively act as miRNA inhibitors in cells when delivered via exosomes.

XMIR and AXMIR deliver miR-21 and anti-miR-21 and modulate expression of PDCD4

Figure 1. XMIR-21 knockdown and AXMIR-21 upregulation of the miR-21 target PDCD4. (A) Western blot data and (B) quantitation.

PRODUCT LIST AND SEARCH BAR:

Available AXMIR RNA Oligos

Use the search box below to find a product by name or catalog number

Search by name or catalog number

Description
Size
Catalog Number
Price
Quantity
Add to Cart
AXMIR-1 RNA oligo anti-miRNA-1-3p with Xmotif
10 Reactions
AXMIR-1
$ 341
AXMIR-122 RNA oligo anti-miRNA-122-5p with Xmotif
10 Reactions
AXMIR-122
$ 341
AXMIR-124a RNA oligo anti-miRNA-124a-3p with Xmotif
10 Reactions
AXMIR-124a
$ 341
AXMIR-125a RNA oligo anti-miRNA-125a-5p with Xmotif
10 Reactions
AXMIR-125a
$ 341
AXMIR-125b RNA oligo anti-miRNA-125b-5p with Xmotif
10 Reactions
AXMIR-125b
$ 341
AXMIR-145 RNA oligo anti-miRNA-145-5p with Xmotif
10 Reactions
AXMIR-145
$ 341
AXMIR-146a RNA oligo anti-miRNA-146a-5p with Xmotif
10 Reactions
AXMIR-146a
$ 341
AXMIR-150 RNA oligo anti-miRNA-150-5p with Xmotif
10 Reactions
AXMIR-150
$ 341
AXMIR-155 RNA oligo anti-miRNA-155-5p with Xmotif
10 Reactions
AXMIR-155
$ 341
AXMIR-200c RNA oligo anti-miRNA-200c-3p with Xmotif
10 Reactions
AXMIR-200c
$ 341
